Multi-Layer
Return



Multi-layer Piezo Ceramic Actuators

Applications:

bulletPrinter heads, ink jet type
bulletMechanical driver is micro-machine
bulletUltrasonic motor
bulletMicro-positioning units

Typical features of Multi-layer Piezo Ceramic Actuator, Linear and Bimorph



Type Linear Bimorph
Dimension X(mm) 3 40
  Y(mm) 2 10
  Z(mm) 16 0.5
Input Voltage (V) 100 50
Top-displacement (Ám) 11 1200






Actuator Product

Linear Type Multi-layer Actuator

Size 20 X 1.5 X 2.3mmt
Ceramic Material NP-9
Ceramic Layer Thickness 50Ám
No. Ceramic Layers 30
Top & Bottom Layer Thickness 0.4mm

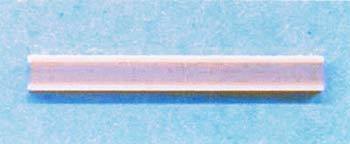

Side view of Piezo Actuator




Actuator Product

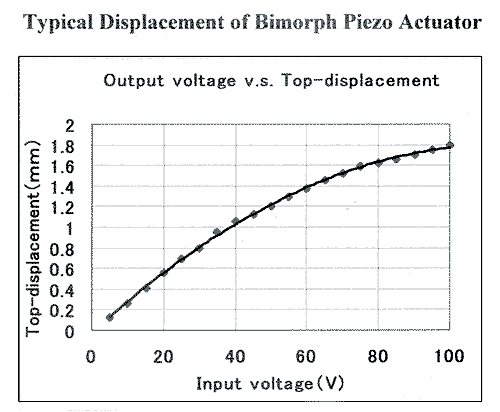

Bimorph Type Multi-layer Actuator

Size 32 X 10 X 0.4mmt
Ceramic Material NP-9
Ceramic Layer Thickness 30-50Ám
No. of Ceramic Layers 8
Top & Bottom Layer Thickness 40Ám

Side View of Piezo Actuator

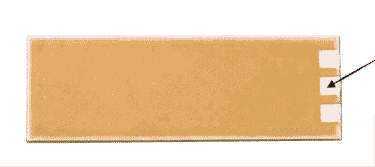

Connector pads for voltage supply.

(These pads are connected to inner electrodes through vias)
