Slight Movement Detectors

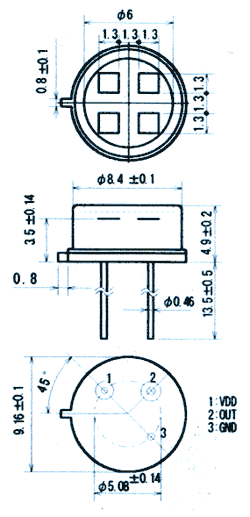

Quad type detector SPS241EN

The SPS241EN pyroelectric infrared detector is specially designed for slight movement.

The sensor element packages are TO-5 hermetically sealed and contain an inert gas environment, making the sensors extremely reliable and durable.

Model SPS241EN Values Units Conditions
Element size 1.3 X 1.3 X (4) mm
Sensitivity typ 2200 V/W 500K, 1Hz.
Noise max. 300 mVp-p 25°C, X 5000
Source voltage 0.38 ~ 1.3 V 25°C
Supply voltage 2.0 ~ 10 V
Load resistor 10 ~ 1000 Kohm
Operating temp. -20 ~ 70 °C
Storage temp -40 ~ 80 °C

These specifications are subject to change without notice.
