Vibration Sensor
Return

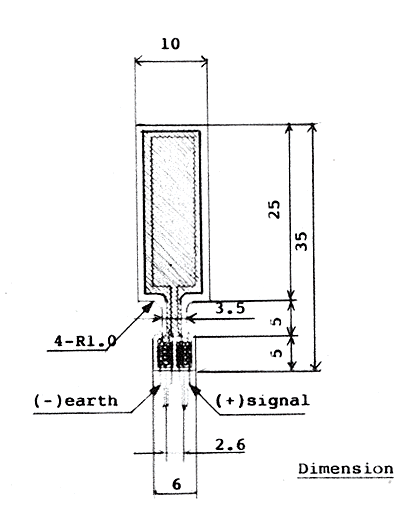

Vibration Pick-up Sensor

Material Piezo film
Electrostatic Capacitance 255 pF +/- 5%
Output Voltage (length direction) Model No. SLT-A110S 90mV/%
Model No. SLT-B110S   9mv/%
Sensitivity (thickness direction) 13 V
Application (example) Silent musical instruments.
Soldering conditions Time: # secods or less
Solder tip temp.: 380C or less
Terminal joints (metal part) to be protected by cooling clip at soldering.


Specifications may be modified without notice to obtain product improvement.
