B200 Motion
Return



B200 Motion Detecting Catch Sensor
(Detects vibration omni-directionally)

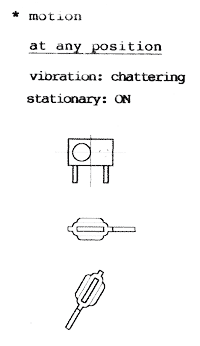

ON/OFF Normally on in stand still position.
Closed when detecting 'acceleration' by 'chattering' non-directionally at any position.
No. of terminals 2
Electrode contact Conductive ball contact
Hermetic seal Non-waterproof
Contact capacity 6V DC max. 0.1A min. 30mA max.
Resistive load
Resistance between terminals <5 ohms (Initial < 1 ohm)
6V DC @ 30mA
Insulation resistance Between contacts, open circuit:
>10Megohm @ 100V AC
Dielectric strength Between contacts, open circuit:
60 Sec. 100V AC leakage current < 1mA
Operating temp. range -30C to +80C (non-freeze)
Life Contact resistance to be within specification after 10,000,000 cycles in X, Y and Z axis.
Vibration proof Contact resistance to be within specification after vibration in X, Y and Z axis @ 10Hz 1G
Heat resistance Operate after 96Hours @ +80C
Cold proof Operate after 96Hours @ -30C
Drop test Drop 5 times from 100cm onto 30mm beneer board. (except terminals)

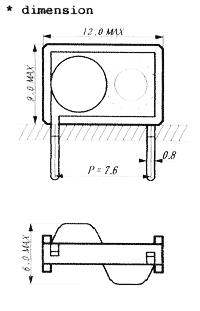

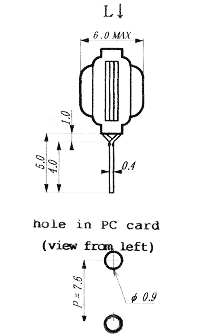

Dimensions 12.0mm max X 9.0mm max X 6.0mm max pitch 7.6mm
Solderability Manual in 3 sec. @ < 350C
Reflow soldering is not allowed.
Must avoid flux.
